RuanYi (SEC Robotics) is one of the earliest robotics companies to develop 3D vision-based mobile robots and achieve large-scale deployment in the manufacturing sector.

Centered around its 3D vision technology,RY -MRDVS®(RuanYi Mobile Robot Depth Vision System), and driven by next-generation mobile robots, RuanYi Robotics (SEC Robotics) integrates digital twins and IoT technologies to provide comprehensive smart logistics solutions to its clients.

CORE TECHNOLOGIES

RuanYi’s R&D team is composed of experts from the Chinese Academy of Sciences, Fudan University, Zhejiang University, and renowned robotics companies. Our self-developed 3D vision perception technology, robot controllers, and digital operating systems ensure safer, more stable, and smarter products and solutions.

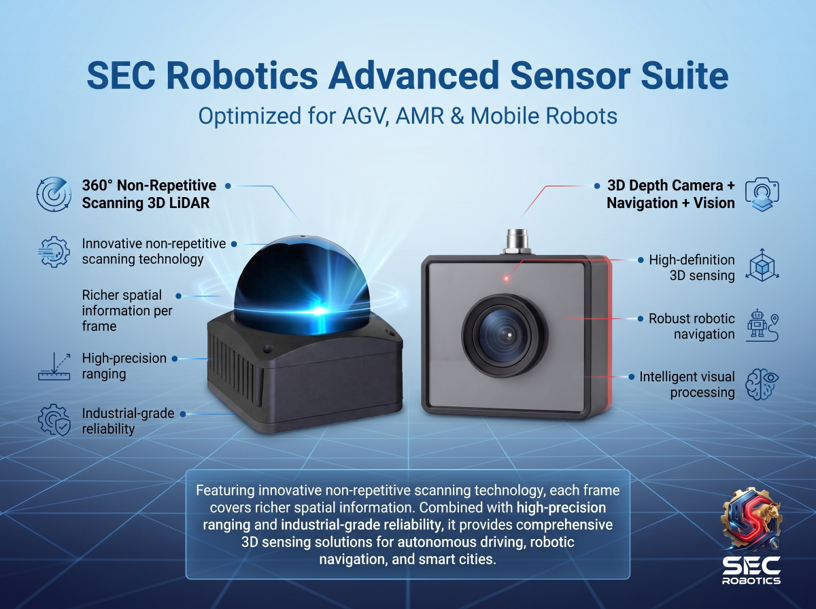

3D Vision Perception

By developing 3D vision combined with AI algorithms, RuanYi Robotics (SEC Robotics) enhances the robot’ s ability to perceive its environment in three dimensions, making it adaptable to a broader range of industrial scenarios. RuanYi is a pioneer in the vision mobile robot category.

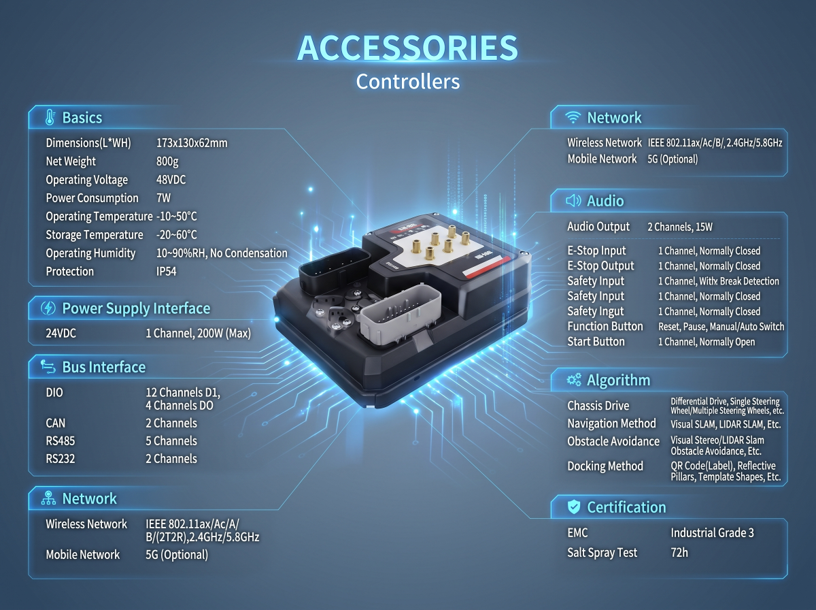

Robot Controller

RuanYi’s (SEC Robotics) self-developed robot core controller further enhances the intelligence of mobile robots, ensuring more stable performance of the robots’ functions during operations.

Digital Operating System

RuanYi’ s robot (SEC Robotics) scheduling system supports managing multi-brand mobile robots and factory automation logistics equipment, enabling device collaboration and intelligent scheduling. Its low-code business process engine simplifies scenario setup, accelerates customization, and optimizes smart manufacturing for greater efficiency and flexibility.

Access Layer

Business access

Robot access

Service Layer

Algorithm Layer

Task matching (MRTA)

Traffic control (MAPF)

Path planning

Operations Management

SEC Robotics Platform

INTELLIGENT LOGISTICS: DEPLOYED

Equipped with RY-MRDVS Support 3D Vision/Laser SLAM Navigation enabling easier deployment

LATENT MOBILE SERIES

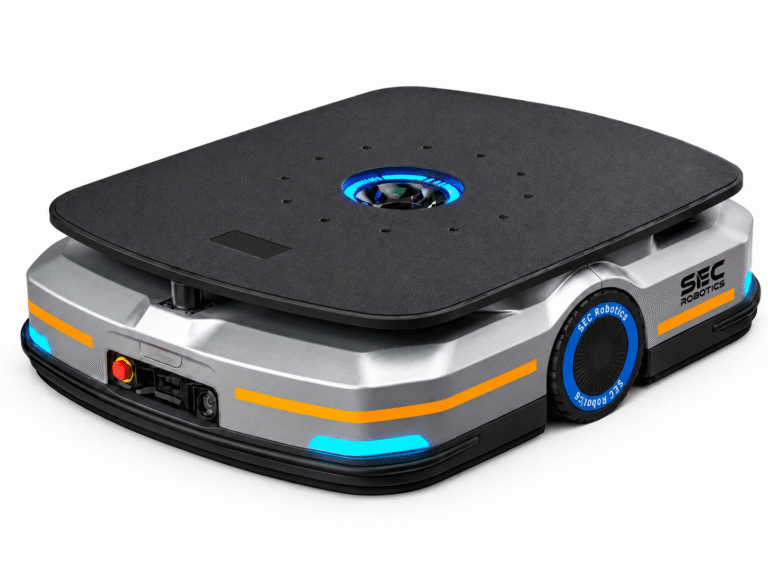

LATENT MOBILE ROBOT STANDARD SERIES

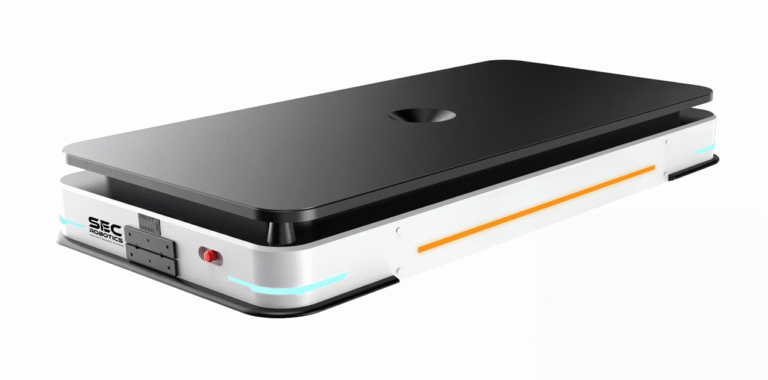

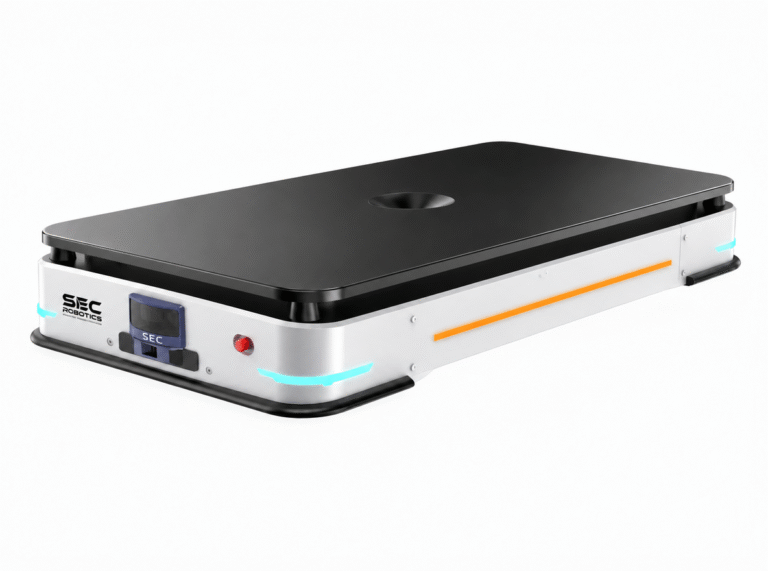

LATENT MOBILE ROBOT HEAVY SERIES

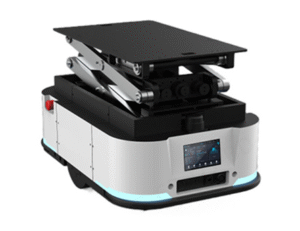

SEC-LM50100

Rated load_(Max Payload) (kg): 50kg/100kg

External Dimensions (L*W*H): 665*420*380 mm.
Lift Stroke: 400 mm.

SEC-LM400

Rated load_(Max Payload) (kg): 400kg

External Dimensions (L*W*H): 780*540*260 mm.
Lift Stroke: 60 mm.

SEC-LM600

Rated load_(Max Payload) (kg): 600kg

External Dimensions (L*W*H): 950*650*260 mm.
Lift Stroke: 60 mm.

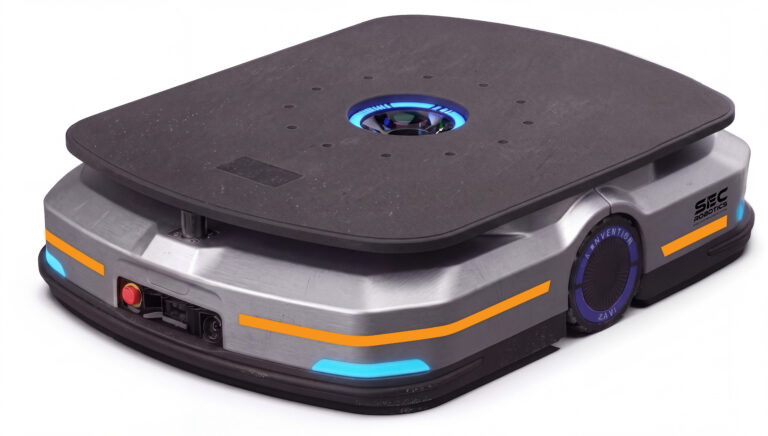

SEC-LM1000

Rated load_(Max Payload) (kg): 1,000kg

External Dimensions (L*W*H): 1,150*820*260 mm.
Lift Stroke: 60 mm.

SEC-LM1500

Rated load_(Max Payload) (kg): 1,500kg

External Dimensions (L*W*H): 1,150*820*260 mm.
Lift Stroke: 60 mm.

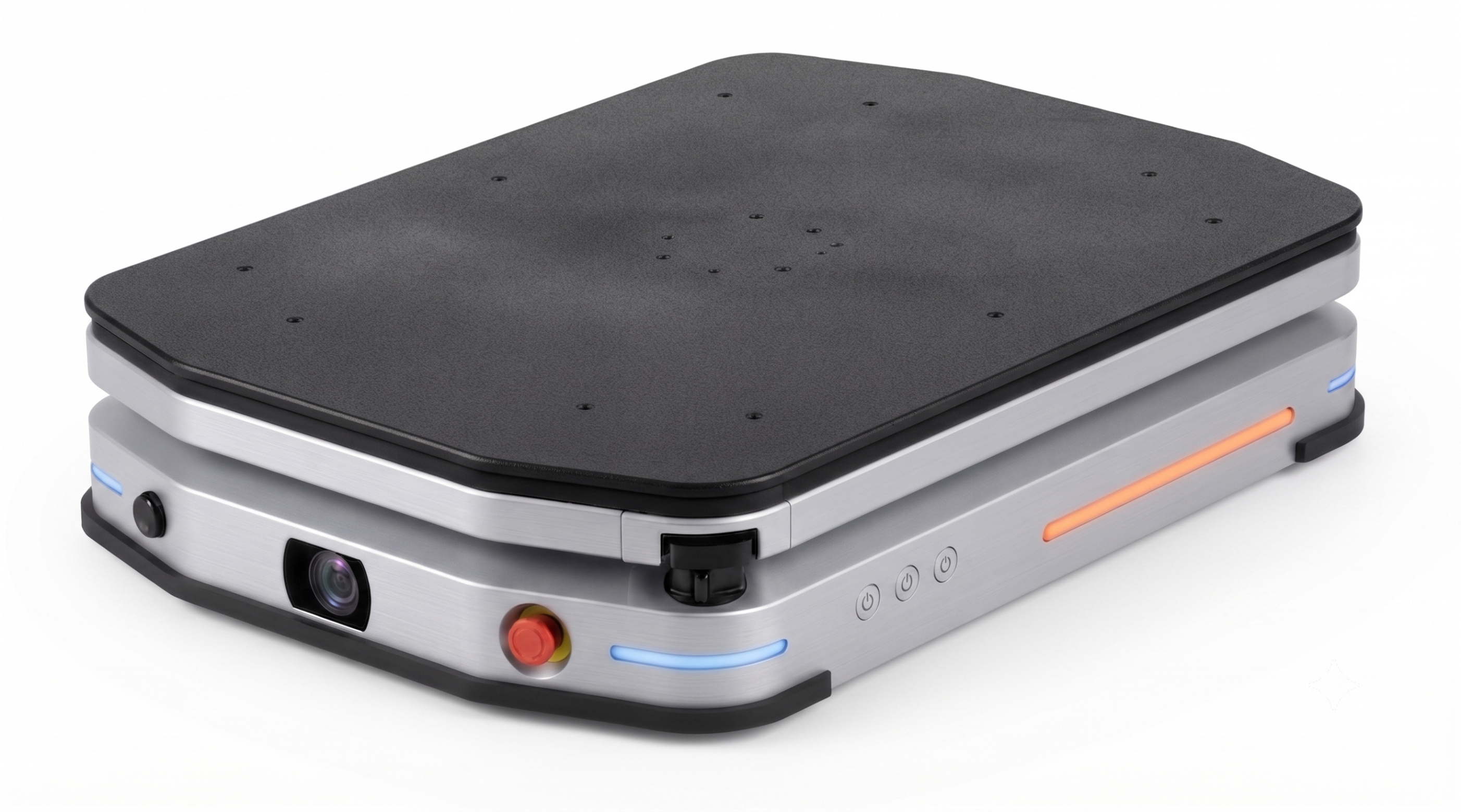

SEC-LM2000

Rated load_(Max Payload) (kg): 2,000kg

External Dimensions (L*W*H): 1,450*1,100*325 mm.
Lift Stroke: 80 mm.

SEC-LM2000L

Rated load_(Max Payload) (kg): 2,000kg

External Dimensions (L*W*H): 2,000*875*370 mm.
Lift Stroke: 100 mm.

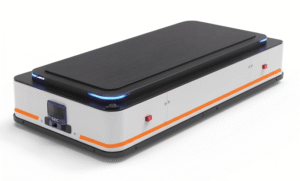

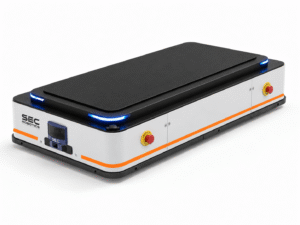

SEC-LM2000-H

Rated load_(Max Payload) (kg): 2,000kg

STANDARD
External Dimensions (L*W*H): 1,900*1,200*370 mm.
Lift Stroke: 100 mm.

SPECIAL SIZE
External Dimensions (L*W*H): 2,800*1,300*370 mm.
Lift Stroke: 150 mm.

SEC-LM2500-H

Rated load_(Max Payload) (kg): 2,500kg

STANDARD
External Dimensions (L*W*H): 1,995*985*350 mm.
Lift Stroke: 100 mm.

SPECIAL SIZE
External Dimensions (L*W*H): 2,800*1,300*370 mm.
Lift Stroke: 150 mm.

SEC-LM3000-H

Rated load_(Max Payload) (kg): 3,000kg

STANDARD
External Dimensions (L*W*H): 2,000*1,400*400 mm.
Lift Stroke: 100 mm.

SPECIAL SIZE
External Dimensions (L*W*H): 3,000*1,400*370 mm.
Lift Stroke: 150 mm.

SEC-LM4000-H

Rated load_(Max Payload) (kg): 4,000kg

STANDARD
External Dimensions (L*W*H): 2,200*1,500*400 mm.
Lift Stroke: 100 mm.

SPECIAL SIZE
External Dimensions (L*W*H): 3,000*1,500*400 mm.
Lift Stroke: 150 mm.

SEC-LM5000-H

Rated load_(Max Payload) (kg): 5,000kg

STANDARD
External Dimensions (L*W*H): 2,200*1,500*410 mm.
Lift Stroke: 100 mm.

SPECIAL SIZE
External Dimensions (L*W*H): 3,200*1,500*400 mm.
Lift Stroke: 150 mm.

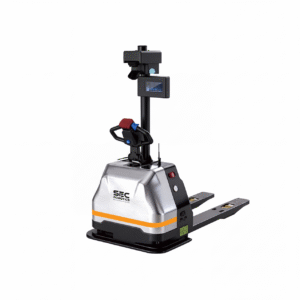

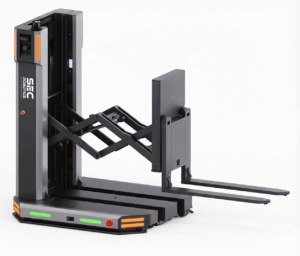

FORKLIFT MOBILE ROBOT SERIES

PALLET (FORKLIFT) MOBILE ROBOT SERIES

UNMANNED FORKLIFT MOBILE ROBOT

SEC-PLM600

Rated load_(Max Payload) (kg): 600kg

External Dimensions (L*W*H): 1,286*1,100*190 mm.
Lift Stroke: 330 mm.

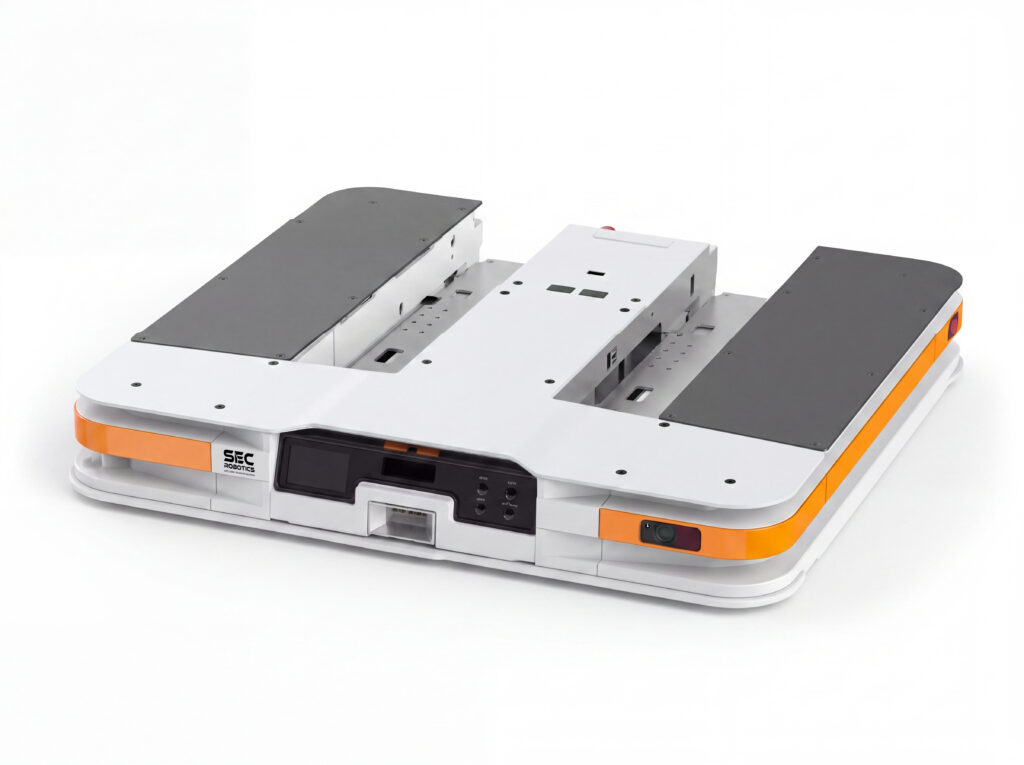

SEC-PLM1000

Rated load_(Max Payload) (kg): 1,000kg

External Dimensions (L*W*H): 1,286*1,100*190 mm.
Lift Stroke: 330 mm.

SEC-PLM1500

Rated load_(Max Payload) (kg): 1,500kg

External Dimensions (L*W*H): 1,286*1,100*245 mm.
Lift Stroke: 330 mm.

SEC-PCLM12001P

Rated load_(Max Payload) (kg): 1,200kg

External Dimensions (L*W*H): 1,386*1,036*245 mm.
Lift Stroke: 400 mm.

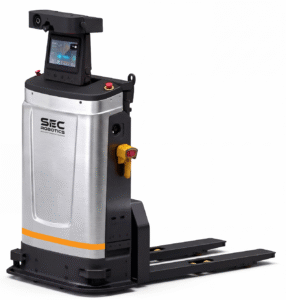

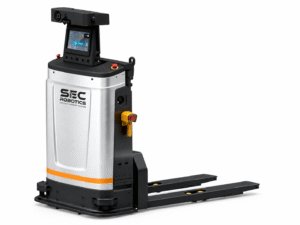

SEC-FLM14003S

Rated load_(Max Payload) (kg): 1,500kg

External Dimensions (L*W*H): 1,720*990*1,820 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 1,600 mm. (Max. 3,500 mm)

SEC-FLM15003P

Rated load_(Max Payload) (kg): 1,500kg

External Dimensions (L*W*H): 1,721*868*1,737 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 90-200 mm.

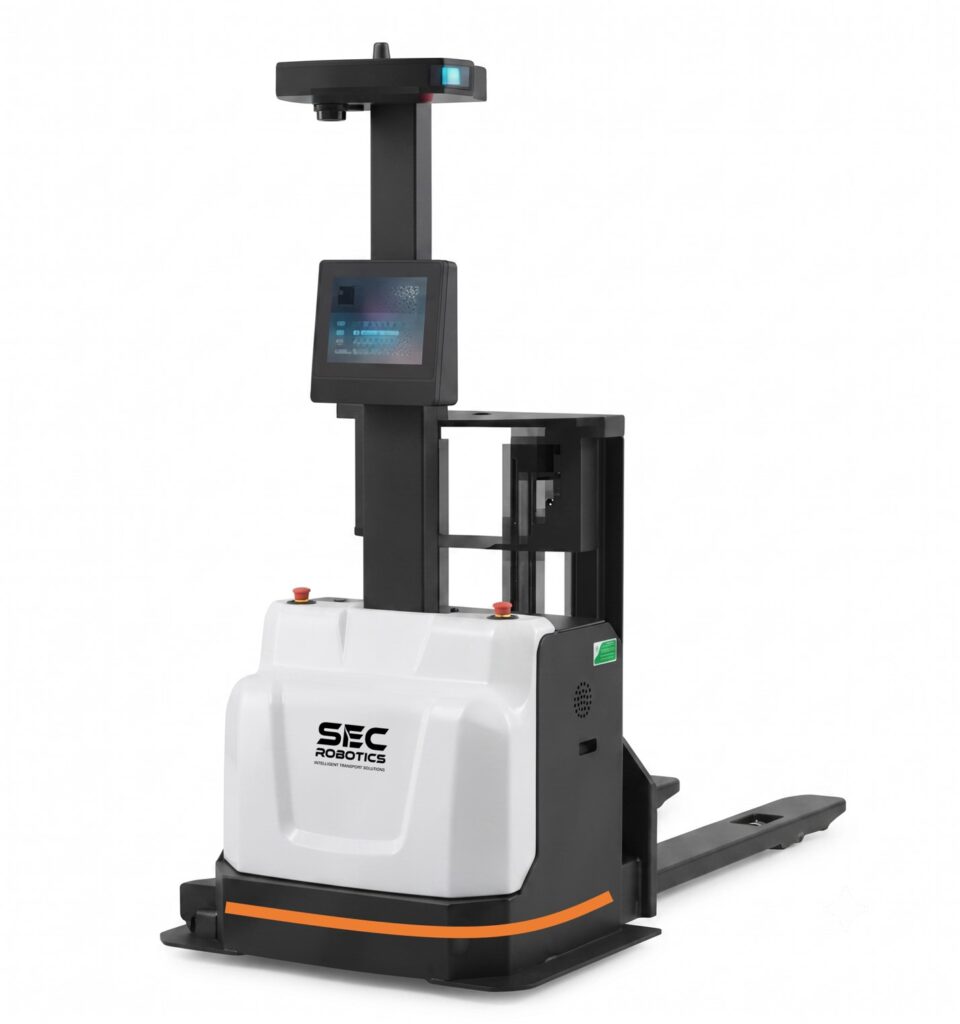

SEC-FLM20003S

Rated load_(Max Payload) (kg): 2,000kg

External Dimensions (L*W*H): 2,120*1,100*2,250 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 2,500 mm. (Max. 4,500 mm)

SEC-FEM30004P

Rated load_(Max Payload) (kg): 3,000kg

External Dimensions (L*W*H): 1,650*980*1,950 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 90-210 mm(Lifting travel 120mm)

SEC-XFEM30004P

Rated load_(Max Payload) (kg): 3,000kg

External Dimensions (L*W*H): 2,910*980*2,210 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 1,600 mm. (Max. 3,500 mm)

SEC-FLVM20004B

Rated load_(Max Payload) (kg): 2,000kg

External Dimensions (L*W*H): 1,924*931*1,730 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 110~200 mm (Lifting travel 90mm)

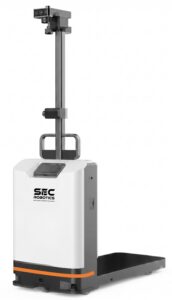

SEC-FRM800P

Rated load_(Max Payload) (kg): 800kg

External Dimensions (L*W*H): 1,575*800*1,850 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 200 mm.

SEC-FEAM20003S

Rated load_(Max Payload) (kg): 2,000kg

External Dimensions (L*W*H): 1,650*1,545*2,025 mm.
LiLifting Stroke/Height (Maximum Lifting Weight (kg) (Fork Arm): 2,250 mm.

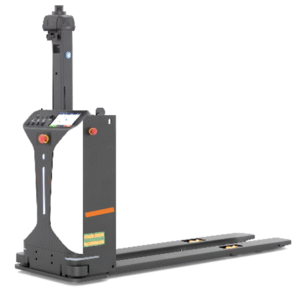

UNMANNED FORKLIFT SERIES (SEC-XFEM30004P)

UNMANNED FORKLIFT SERIES (SEC-FEM30004P)

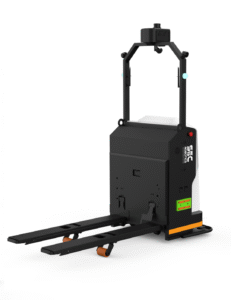

UNMANNED FORKLIFT SERIES (SEC-FLVM20004B)-R

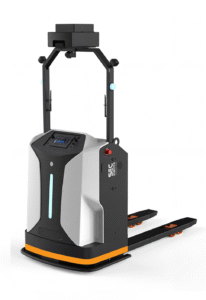

UNMANNED FORKLIFT SERIES (SEC-FLVM20004B)-L

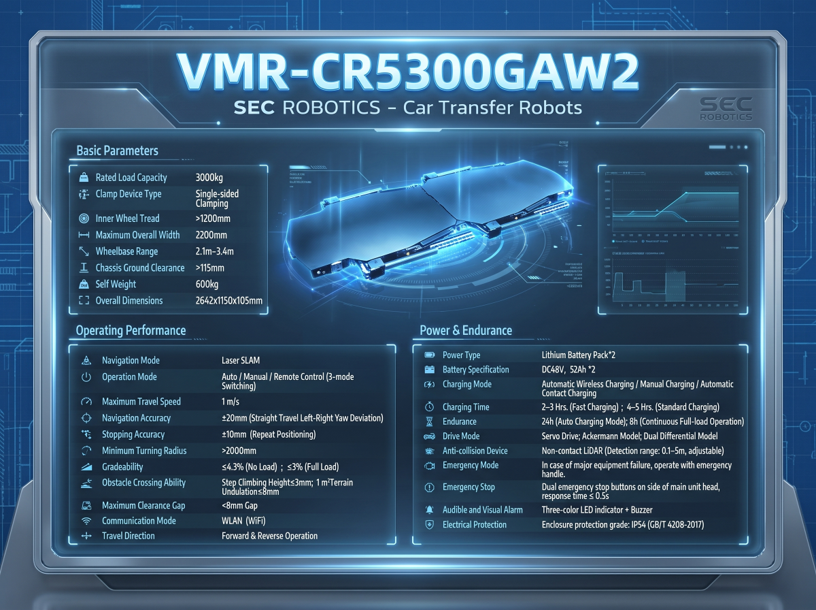

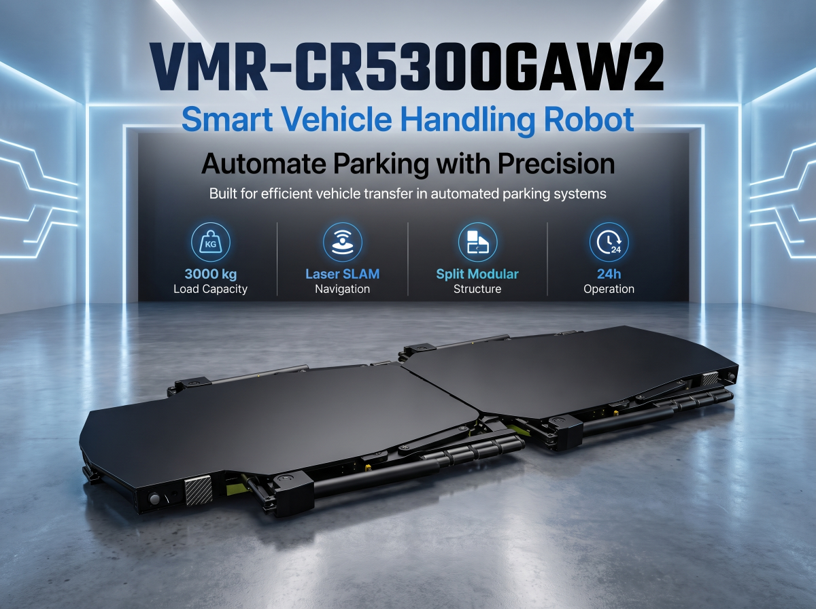

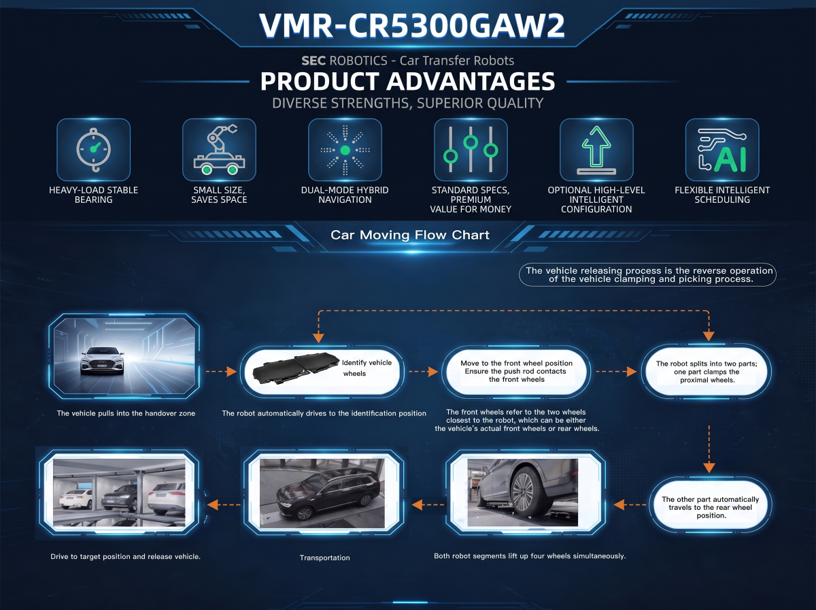

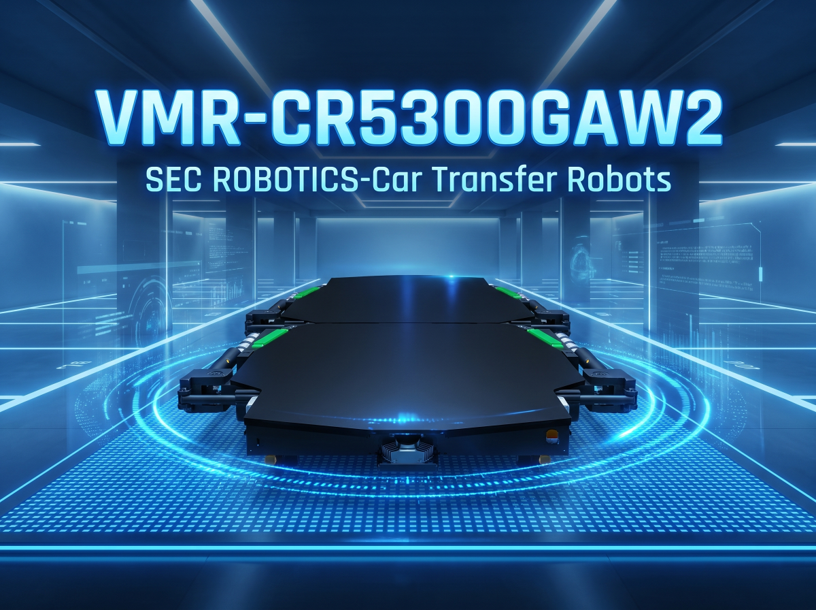

CAR TRANSFER ROBOT

CAR PARKING ROBOT/CAR TRANSFER ROBOT (Intelligent Automatic Version )

We provide intelligent and remote-controlled car parking robots with a rated 3000kg load.

The intelligent version adopts laser SLAM navigation and self-adaptive clamping to safely move sedans and SUVs, widely used in shopping malls, residential compounds, 4S shops and hospitals.

The remote-control type is cost-effective for small garages. We support factory visits or online meetings for technical discussion and customized solutions.
